Окрашивание текстиля → Пропитывание

Аппарат для крашения пряжи или нитей в бобинах COLORSTAR CJ



The Colorstar type «CJ» is a 1-position dyeing system for use both in mill laboratories and research institutes. The vast selection of machine versions and versatile accessories means that the «CJ» can be tailored to customer requirements. The dyeing principle works according to the bobbin and beam principle and the exhaust dyeing method, whereby the dye liquor is guided through the stationary material sample, reversing inside – outside or outside – inside. The integrated vacuum pressure pump creates the required atmosphere in the treatment room.
COLORSTAR type В«CJВ»

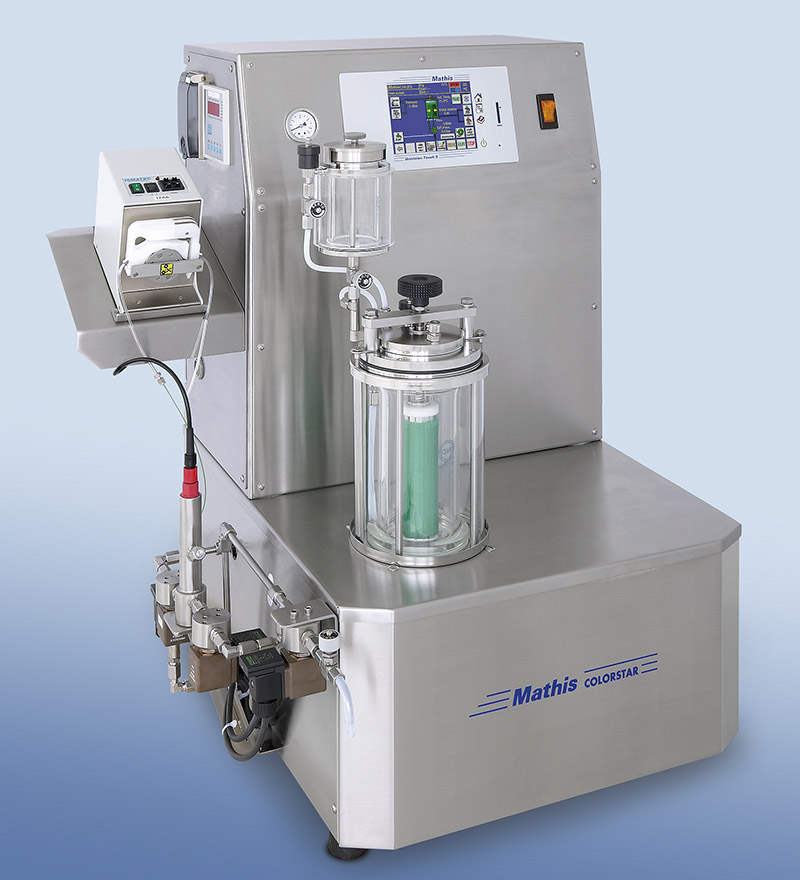

Colorstar type В«CJ-RВ»
The В«CJВ» is particularly suited for the dyeing of:
- Woven and knit goods treated as a beam
- Yarns as a bobbin
- Loose material, fibers and worsted tops in the dye basket



The following is a selection of the various В«CJВ» accessories. Further accessories on request:

Regulating device for flow rate and differential pressure including special reversing device
pH measuring and regulating device
Feeding chamber for additions
Hand syringe or dosing pump
PC visualization software for recording and registration of four parameters (В°C, l/min, bar, pH)
SMART LiquorВ®
Dye beam for piece goods
Dye beam for bobbin
Dye basket for loose material



«CJ-1000→
CJ The Colorstar type «CJ» is a 1-position dyeing system for use both in mill laboratories and research institutes. The vast selection of machine versions and versatile accessories means that the «CJ» can be tailored to customer requirements. The dyeing principle works according to the bobbin and beam principle and the exhaust dyeing method, whereby the dye liquor is guided through the stationary material sample, reversing inside – outside or outside – inside. The integrated vacuum pressure pump creates the required atmosphere in the treatment room.
Temperature range up to 135 °C
CJ The Colorstar type «CJ» is a 1-position dyeing system for use both in mill laboratories and research institutes. The vast selection of machine versions and versatile accessories means that the «CJ» can be tailored to customer requirements. The dyeing principle works according to the bobbin and beam principle and the exhaust dyeing method, whereby the dye liquor is guided through the stationary material sample, reversing inside – outside or outside – inside. The integrated vacuum pressure pump creates the required atmosphere in the treatment room.
Temperature gradient 0.3 – 4 °C/min
CJ The Colorstar type «CJ» is a 1-position dyeing system for use both in mill laboratories and research institutes. The vast selection of machine versions and versatile accessories means that the «CJ» can be tailored to customer requirements. The dyeing principle works according to the bobbin and beam principle and the exhaust dyeing method, whereby the dye liquor is guided through the stationary material sample, reversing inside – outside or outside – inside. The integrated vacuum pressure pump creates the required atmosphere in the treatment room.
Liquor circulation 3.0 l/min
CJ The Colorstar type «CJ» is a 1-position dyeing system for use both in mill laboratories and research institutes. The vast selection of machine versions and versatile accessories means that the «CJ» can be tailored to customer requirements. The dyeing principle works according to the bobbin and beam principle and the exhaust dyeing method, whereby the dye liquor is guided through the stationary material sample, reversing inside – outside or outside – inside. The integrated vacuum pressure pump creates the required atmosphere in the treatment room.
Liquor ratio ~1:8 to 1:20 depending on material
CJ The Colorstar type «CJ» is a 1-position dyeing system for use both in mill laboratories and research institutes. The vast selection of machine versions and versatile accessories means that the «CJ» can be tailored to customer requirements. The dyeing principle works according to the bobbin and beam principle and the exhaust dyeing method, whereby the dye liquor is guided through the stationary material sample, reversing inside – outside or outside – inside. The integrated vacuum pressure pump creates the required atmosphere in the treatment room.
Liquor circulation outside/inside and inside/outside
CJ The Colorstar type «CJ» is a 1-position dyeing system for use both in mill laboratories and research institutes. The vast selection of machine versions and versatile accessories means that the «CJ» can be tailored to customer requirements. The dyeing principle works according to the bobbin and beam principle and the exhaust dyeing method, whereby the dye liquor is guided through the stationary material sample, reversing inside – outside or outside – inside. The integrated vacuum pressure pump creates the required atmosphere in the treatment room.
Dimensions W x D x H 500 x 620 x 820 mm
CJ The Colorstar type «CJ» is a 1-position dyeing system for use both in mill laboratories and research institutes. The vast selection of machine versions and versatile accessories means that the «CJ» can be tailored to customer requirements. The dyeing principle works according to the bobbin and beam principle and the exhaust dyeing method, whereby the dye liquor is guided through the stationary material sample, reversing inside – outside or outside – inside. The integrated vacuum pressure pump creates the required atmosphere in the treatment room.
Weight ~70 kg
CJ The Colorstar type «CJ» is a 1-position dyeing system for use both in mill laboratories and research institutes. The vast selection of machine versions and versatile accessories means that the «CJ» can be tailored to customer requirements. The dyeing principle works according to the bobbin and beam principle and the exhaust dyeing method, whereby the dye liquor is guided through the stationary material sample, reversing inside – outside or outside – inside. The integrated vacuum pressure pump creates the required atmosphere in the treatment room.
