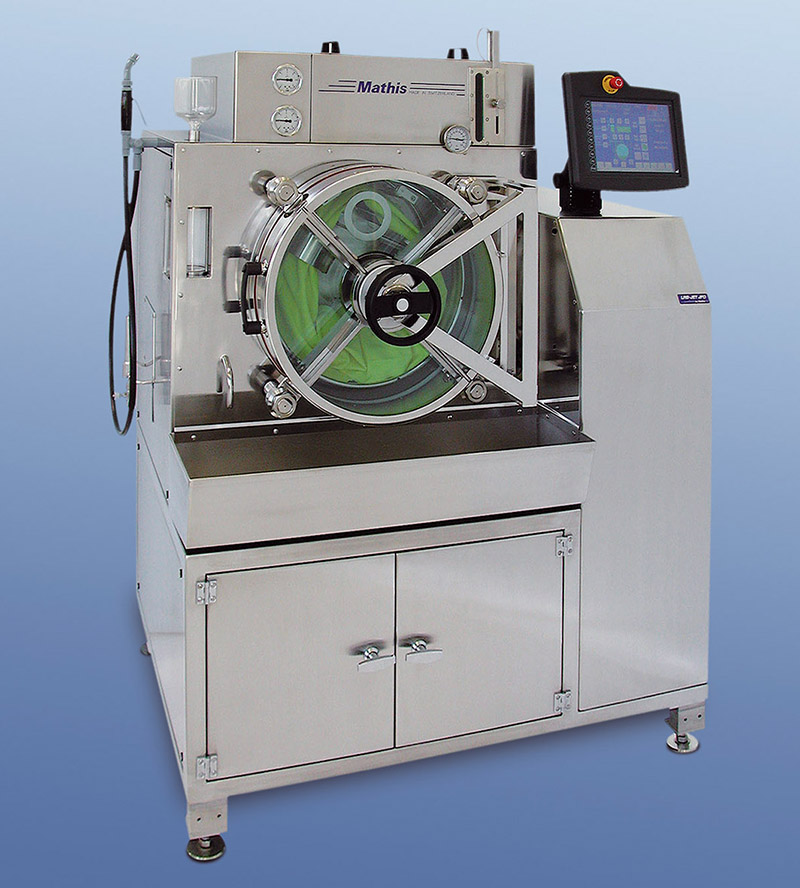

| The overflow jet dyeing apparatus type В«JFOВ» is a multiple use HT dyeing system. |
 |
| Overflow jet dyeing system type В«JFOВ» | | | | | |
|
|
The В«JFOВ» can be used for the following processes:
- Jet dyeing with different jet diameters.
Fabric width up to 1500 mm
- Dyeing and washing using a drum
- Beam and bobbin dyeing
- Knitted tube dyeing
- HT-beaker dyeing with different volumes and quantities |
|
 | Jets with different jet diameters
|
| Different dyeing drums
|
| Knitted tube open vat and nozzle
|
| Bobbin dyeing device
|
| 200 ml HT beaker
|
| Flow measurement
|
| Dosing devices
|
| pH value measurement |
|
|
| Jet material content | 100 – 1000 g
|
|
| Jet material speed | 4 – 30 m/min
|
|
| Temperature range | 20 – 140 °C
|
|
| Temperature gradient | 0.3 – 4 °C/min
|
|
| Liquor content | 6 – 20 l
|
|
| Jet liquor ratio | approx. 1:5 and higher
|
|
| Dyeing drum liquor ratio | 1:12 up to 1:50
|
|
| Liquor circulation | infinitely variable up to max. 20,000 l/h
|
|
| Number of HT beakers | 6 x200 ml
|
|
| Preparing container volume | 25 l
|
|
| Adding container volume | 0.5 l
|
|
| Operation | Univision
|
|
| Dimensions W x D x H | 1200 x 850 x 1565 mm
|
|
| Weight | ~500 kg |
|
|
|
|
