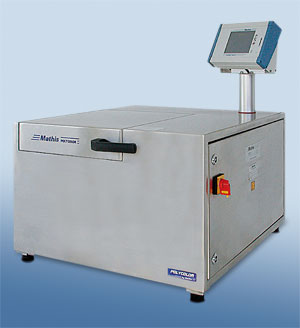

The Polycolor beaker dyeing apparatus type В«PВ» is a universal laboratory dyeing apparatus for developing production recipes.
Textile, yarns in hank form and knitted goods are treated with this unit. |
![](../images/structure/spacer.gif) |
|
![](../images/structure/spacer.gif) |
![](../images/grauC.gif)
![](../images/structure/dot_black.gif) | Adding of chemicals directly into the dye liquor using a hand syringe |
|
![](../images/structure/spacer.gif) |
![](../images/grauC.gif)
Temperature range | up to 135 °C
|
![P The Polycolor beaker dyeing apparatus type «P» is a universal laboratory dyeing apparatus for developing production recipes.
Textile, yarns in hank form and knitted goods are treated with this unit.](../images/grauC.gif) |
Temperature gradient | 0.3 – 4 °C/min
|
![P The Polycolor beaker dyeing apparatus type «P» is a universal laboratory dyeing apparatus for developing production recipes.
Textile, yarns in hank form and knitted goods are treated with this unit.](../images/grauC.gif) |
Number / sizes of dye beakers | 12 x 150 ml 24 x 150 ml 8 x 300 ml 16 x 300 ml 8 x 500 ml (washing test) 1 x 10,000 ml
|
![P The Polycolor beaker dyeing apparatus type «P» is a universal laboratory dyeing apparatus for developing production recipes.
Textile, yarns in hank form and knitted goods are treated with this unit.](../images/grauC.gif) |
Revolving disk speed | 8 – 45 rpm
|
![P The Polycolor beaker dyeing apparatus type «P» is a universal laboratory dyeing apparatus for developing production recipes.
Textile, yarns in hank form and knitted goods are treated with this unit.](../images/grauC.gif) |
Liquor ratio | 1:8
|
![P The Polycolor beaker dyeing apparatus type «P» is a universal laboratory dyeing apparatus for developing production recipes.
Textile, yarns in hank form and knitted goods are treated with this unit.](../images/grauC.gif) |
Operation | Univision
|
![P The Polycolor beaker dyeing apparatus type «P» is a universal laboratory dyeing apparatus for developing production recipes.
Textile, yarns in hank form and knitted goods are treated with this unit.](../images/grauC.gif) |
Dimensions W x D x H | 650 x 700 x 790 mm
|
![P The Polycolor beaker dyeing apparatus type «P» is a universal laboratory dyeing apparatus for developing production recipes.
Textile, yarns in hank form and knitted goods are treated with this unit.](../images/grauC.gif) |
Weight | ~85 kg |
![P The Polycolor beaker dyeing apparatus type «P» is a universal laboratory dyeing apparatus for developing production recipes.
Textile, yarns in hank form and knitted goods are treated with this unit.](../images/grauC.gif) |
|
