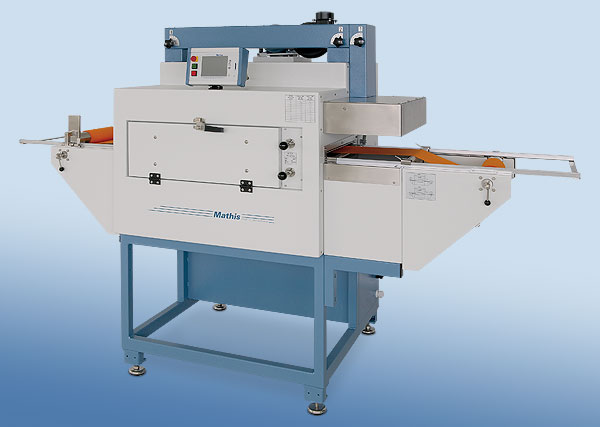

Лабораторная установка для непрерывной сушки ткани KTF
The flexible continuous hot air dryer. Continuous drying under production conditions with the «KTF» - everywhere where the required sample length makes the efficient application of a large machine impossible.
Лабораторная установка для непрерывной сушки ткани KTF
The scopes of application of the В«KTFВ» are the textiles industry, the pharmaceutical industry, foil and paper manufacturers, but also research institutes and development departments of a wide range of sectors.
KTF 350 | KTF 500 | |
| Working width | 300 mm | 450 mm |
| Material speed | 0.1 – 2 m/min | 0.1 – 2 m/min |
| Dwell time roll – roll | 20 – 420 s | 20 – 420 s |
| Dwell time pin frame | 15 – 280 s | 15 – 280 s |
| Circulation air speed | up to 6 m/s | up to 6 m/s |
| Circulation air capacity | up to 1000 m3/h | up to 1000 m3/h |
| Exhaust air capacity | up to 400 m3/h | up to 400 m3/h |
| Temperature range | up to 250°C | up to 250°C |
| Nozzle field length | 800 mm | 800 mm |
| Sample sizes W x L | 330 x 500 mm | 480 x 500 mm |
| Winding diameter | max. 250 mm | max. 250 mm |
| Dimensions W x D x H | ~2430 x 950 x 1765 mm | ~2430 x 1100 x 1765 mm |
