Система термальной обработки ткани при окрашивании HVF-TH

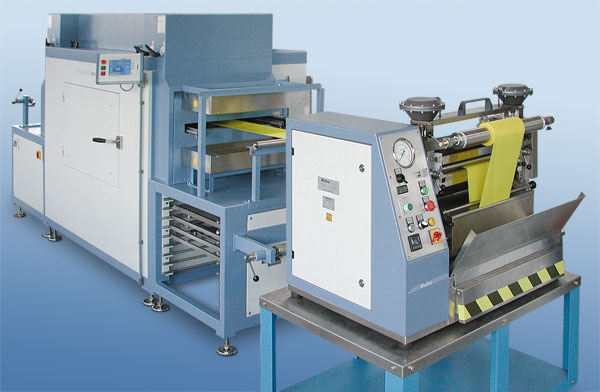

The thermolising unit type В«HVF_THВ» is a combination of the padder type В«HVFВ» and the nozzle box dryer type В«THВ». В«HVFВ» and В«THAВ» can also both be used individually. The nozzle box dryer type В«THAВ» is used as a separate dryer unit with an unwinding device attached at the entrance of the dryer, float dryer, drawing out device and upwinding device. The nozzle box dryer type В«THNВ» also has a transport device for pin and foil frames. Max. sample size 50 x 50 cm.
Система термальной обработки ткани при окрашивании HVF-TH
Опции
- Infrared radiation pyrometer, for contactless measurement of the surface temperature of the fabric feed-Double field dryer for different treatment temperatures: for example, during drying - thermolising
Технические характеристики
| Working width | 300, 450 or 600 mm | ||||||||
 | |||||||||
| Material speed | 0.2 – 10 m/min | ||||||||
| |||||||||
| Material tension | infinitely variable | ||||||||
| |||||||||
| Circulation air speed | infinitely variable 4 – 15 m/s | ||||||||
| Circulation air capacity | 900 – 3500 m³/h | ||||||||
| Temperature range | 20 – 250 °C | ||||||||
| Fresh air dryer | multistep | ||||||||
| Operation | Univision | ||||||||
| Dimensions L x W | approx. 3.8 x 1.3 m | ||||||||
